Quick Answer: Is 13.25x17.75x1 The Same As 14x18x1?
No. 13.25x17.75x1 is an exact size, so the printed number is the frame dimension. 14x18x1 is nominal, and its frame typically measures 13.5 by 17.5 by 0.75 inches: a quarter inch wider on one axis and shorter on the other. Neither dimension lines up, so the two are not interchangeable.
Key Takeaways
13.25x17.75x1 is an exact size: the label is the frame measurement. A standard 14x18x1 frame runs about 13.5 by 17.5 by 0.75 inches, wider on one axis and shorter on the other.
A quarter inch shortfall opens roughly 3.3 square inches, and air takes that open path far out of proportion to its area.
Measure the slot, not the label, then order the exact size.
Why I Went Looking For This Answer
My air handler read 13.25x17.75x1, no store nearby carried it, and the only place I turned up the size was a Filterbuy listing. The closest thing on the shelf was marked 14x18x1. It slid into the track, so I assumed it belonged there. Two weeks later there was a fresh line of dust on a bookcase I had wiped the day it went in. Instead of guessing again, I pulled spec sheets for both sizes and compared frame numbers rather than labels. That produced two findings I have not seen stated anywhere.
How To Tell An Exact Size From A Nominal Size Without A Tape
Most filter sizes are printed as nominal numbers, a rounded label with the frame built a quarter to a half inch smaller so it slides in without forcing. Odd sizes break that pattern. Here is the shortcut nobody prints on the box.
Whole numbers only, such as 14x18x1: almost always nominal. The frame runs a quarter to a half inch smaller.
Fractions, such as 13.25x17.75x1: almost always an exact size, printed at the frame dimension.
A rounding convention needs a round number to round to; a fraction is already the measurement. Confirm with a tape before ordering a case, and you sidestep the common filter replacement mistakes that trip up most homeowners.

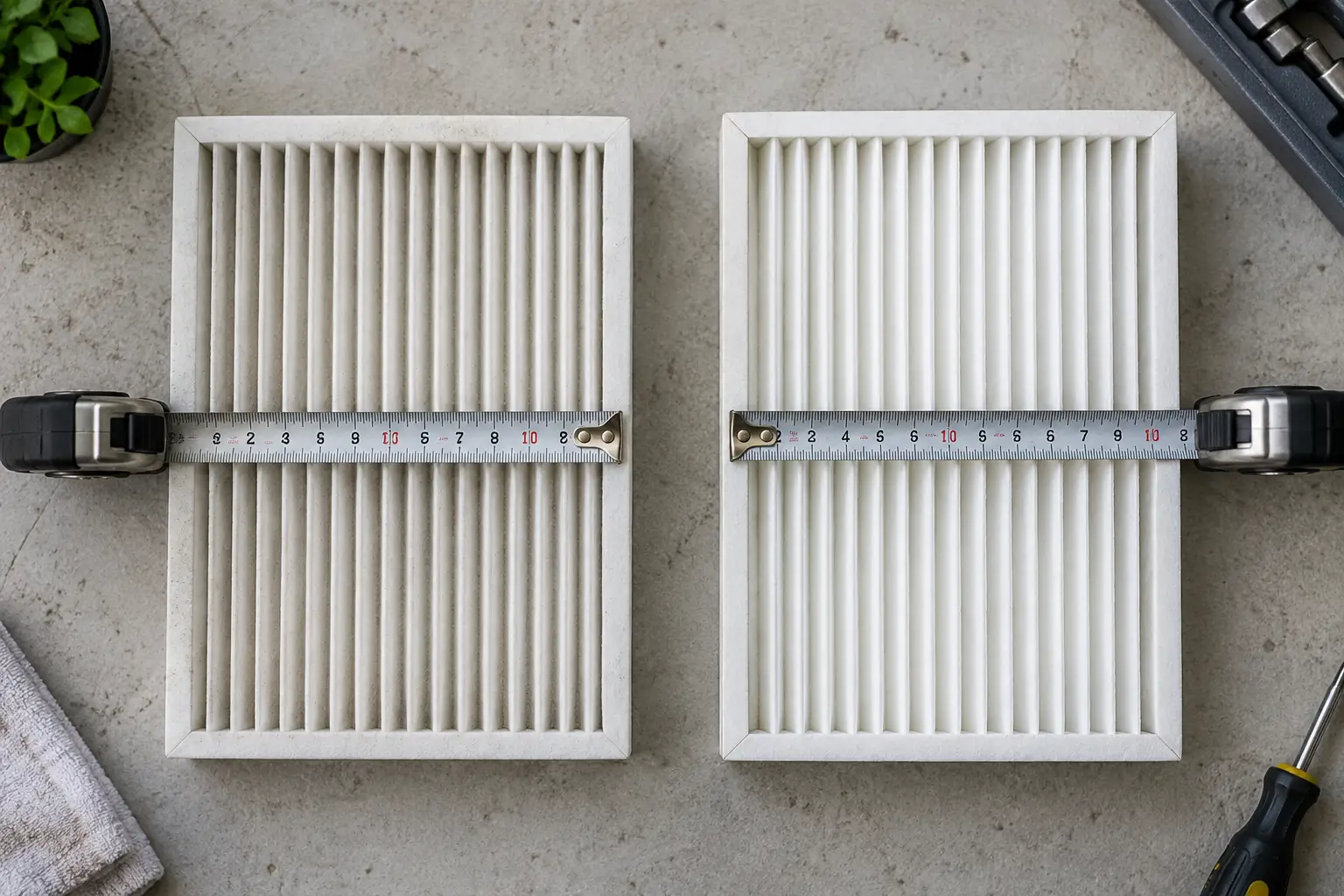

13.25x17.75x1 vs 14x18x1: The Dimension That Actually Matters
Compare frames rather than labels. A 13.25x17.75 frame is 13.25 on the short side and 17.75 on the long side. A common 14x18x1 frame is about 13.5 and 17.5, so the short side is a quarter inch too big and the long side a quarter inch too small.
A substitute undersized on both axes gives a loose fit and a predictable gap. Here the error reverses direction between axes, so the filter wedges against the short side while leaving daylight along the long side. I compared spec sheets across manufacturers and found competing 14x18x1 filters near 13.8 by 17.8 inches, which worsens the bind. Retail listings that publish actual frame dimensions alongside the label save you that discovery at the air handler.
How Much Air Actually Goes Around The Filter
I wanted a number rather than a warning, so I worked the geometry out. A 13.25 by 17.75 face is 235 square inches. Drop in a 14x18x1 and the quarter inch shortfall opens a channel across the 13.25 inch end: 3.3 square inches, about 1.4 percent of the face.
That sounds survivable, and the area figure is why people think it is. The 235 square inches of media resist airflow. The 3.3 square inch channel resists almost nothing. Air takes the open path far out of proportion to its area, and that share grows weekly as the media loads. The filter gets better at filtering and worse at being chosen.
What Is The Closest Size To 13.25x17.75x1?
I went looking for a workable substitute and could not find one. The closest usable size is 13.25x17.75x1 itself. No common nominal size lands within tolerance on both axes. These frames are cut to order for return tracks built to a cabinet dimension rather than a retail size.
If your slot measures 13.25 by 17.75, confirm the dimensions against a listing that publishes actual measurements. Filterbuy is what I checked against, since it prints the 13.25 by 17.75 by 0.75 frame beside the nominal label. For settled dust and seasonal pollen, everyday dust and pollen protection is the sensible starting grade. For year-round symptoms, read up on choosing a rating for allergy-prone homes first.
Why A Gap Around The Air Filter Matters More With UV Light Installed

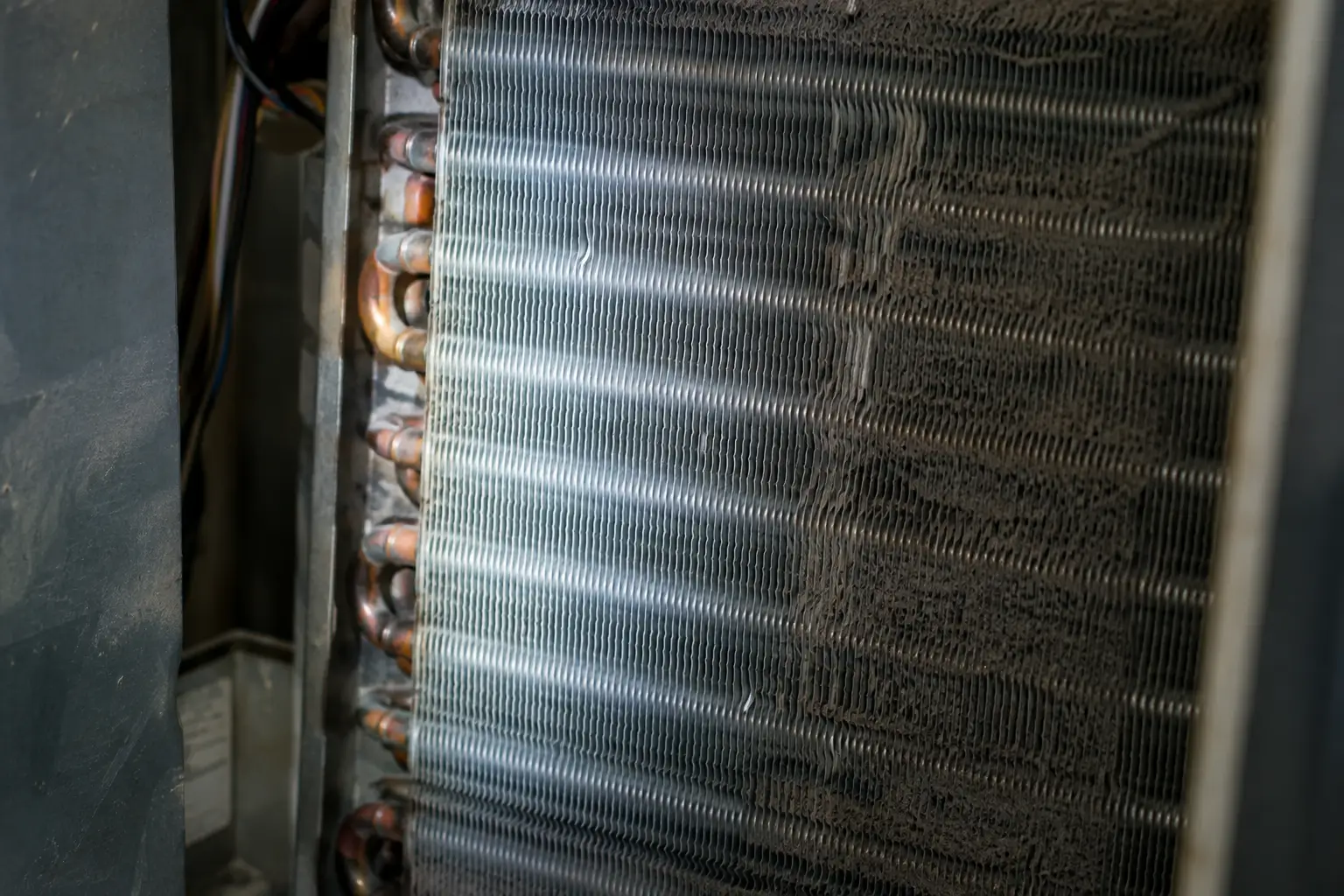

Filter bypass is return air that travels around a filter instead of through it, carrying its full dust load onto whatever comes next. In most Jupiter homes that is the evaporator coil, the same surface a UV lamp is mounted to keep clear.
A UV lamp does its job on a clean coil. When bypass air lays a dust film across the fins, it shields the surface the lamp is aimed at and gives condensate something to bind to. That is what a UV installation exists to prevent. Pairing correct sizing with media built for dust and pollen control gives the lamp a cleaner surface to work on. Coastal homes should also look at sealing leaks on the return side and at filter choices made for humid climates, since no filter fit can fix air drawn in downstream of the slot.
Wrong Size Furnace Filter Airflow Problems To Watch For
Dust returning to shelves and registers within days of a filter change.
A whistling or rushing sound at the return grille when the blower ramps up.
Visible light around the frame edge under a flashlight.
A filter that shifts or rattles, or dust streaking on the upstream coil face.
In my case it was the first and third. None proves a sizing problem alone; together, after a filter swap, they usually do. The cost shows up on the bill, which is why a clean filter lowers energy costs and why routine maintenance that protects airflow pays for itself. Media choice matters too, so matching MERV 13 to your system CFM range belongs alongside sizing.
My Air Filter Is Too Small For The Slot. What Should I Do?
Do not stack two thin filters. Two filters multiply pressure drop without sealing the perimeter, and the pair can bow under load.
Do not tape the frame to the cabinet. Adhesive fails at air handler temperatures and leaves residue.
Do not trim a larger filter. Cutting the frame removes the structure holding the pleats open.
Simpler answers: order the exact size, look at custom HVAC filters cut to a specific slot dimension if the opening is genuinely non standard, or have a technician fit a filter rack sized to the cabinet. A gasketed rack solves bypass permanently and opens the door to thicker media with a longer service life or a balanced step up in filtration.
How To Measure A Filter Slot Correctly
Turn the system off, then slide the existing filter out, pleats facing up.
Measure the filter frame on both axes to the nearest sixteenth of an inch.
Measure the cabinet or grille opening on both axes; the track often runs slightly larger.
Order the size matching the frame measurement, not the nominal number on the old label.
My tolerance: undersized by an eighth of an inch on one axis is workable. A quarter inch or more means replace it. Oversized should never be forced, because a bent frame collapses pleats permanently. Mismatched in opposite directions, as here, is the worst case and the hardest to spot. Once you have the number, stock up on replacements in advance so the next change is not a guess.
Glossary
Nominal size: the rounded label, usually a quarter to a half inch larger than the actual frame, which for a typical 14x18x1 measures 13.5 by 17.5 by 0.75 inches.
Exact size: a filter whose label and frame measurement match, as with 13.25x17.75x1.
Filter bypass: return air traveling around the filter edge instead of through the media.
Supporting Statistics
Nearly half of the average home's roughly $1,900 annual energy bill goes to heating and cooling, and dirt and neglect are the leading causes of system failure. Source: ENERGY STAR, How to Keep Your HVAC System Working Efficiently
Space heating was 42 percent of residential energy consumption in 2020, at $519 per household. Restricted airflow raises the load on the biggest line in the budget. Source: U.S. Energy Information Administration, 2020 Residential Energy Consumption Survey
Over 28 million people in the United States have asthma, including 4.9 million children, and a poorly fitted frame cancels the result they paid for. Source: Asthma and Allergy Foundation of America, Know the Facts About Asthma and Allergies
What I Would Tell Someone In The Same Spot
"The mistake I made was trusting that the filter went in at all. A filter can sit flush against three edges and still leave a quarter inch channel on the fourth that you will never see without a flashlight. Measure the frame, not the label."
Terrance Bresnan, author
Essential Resources For Getting A 13.25x17.75x1 Air Filter Right
Confirm the frame dimension first. The 13.25x17.75x1 air filter size listing from Filterbuy publishes the actual measurement, 13.25 by 17.75 by 0.75 inches, in MERV 8, 11, and 13.
Check the slot itself. The DOE Building Science guide to HVAC filter installation covers where a filter belongs and what the housing needs.
Catch install mistakes. The InterNACHI inspection guide to HVAC filters covers return-side placement and the MERV 6 floor.
Pick a MERV rating on data. The NIOSH ventilation FAQ gives at least 50 percent capture from 0.3 to 1.0 micrometers at MERV 13.
Know your blower limits. The EPA guide to air cleaners in the home sets the 60 to 90 day expectation and warns about fan capacity.
Understand efficiency loss. The ASHRAE filtration and air cleaning guidance explains MERV-A and charged media loss.
Weigh the upgrade. The ACAAI guide to air filters covers whole-house filtration and allergy symptoms.
Frequently Asked Questions
Can I Use A 14x18x1 Filter In A 13.25x17.75x1 Slot?
Not safely. It is a quarter inch wider on the short axis and shorter on the long axis, so it binds on one side and leaves an open channel on the other. Worse than a loose fit, because it looks seated from outside.
What Is The Closest Size To 13.25x17.75x1?
No common nominal size lands within tolerance on both axes. Order the exact size or request a custom cut to the measured slot.
How Much Gap Around An Air Filter Is Too Much?
Any gap you can see light through. A quarter inch channel is a low resistance path, and air follows it as the media loads.
Final Thoughts
Filter sizing is one of the few HVAC variables a homeowner fully controls, and I decided mine the way most people do, by what the store had. For this slot the nearest common box is not close enough, because the error runs in opposite directions on the two axes. If the cabinet was never built right, system installation done to spec and a seasonal system tune-up are the next conversations.
Next Steps
Measure your filter frame and slot opening on both axes and record the numbers.
Check the upstream coil face for a dust band, the clearest sign of bypass.
Keep a spare. pleated media that traps household debris and multi-packs that keep you on schedule make the 60 to 90 day cadence easier.
Book the seasonal service with a professional tune-up checklist so airflow, coil condition, and fit get checked together.
Set up reordering: quick reordering when you run low removes the last excuse.
Outside the U.S.? filtration options for colder climates covers the same sizing logic.
Get The Fit Right Before The Next Filter Change
A quarter inch in each direction decides whether your system filters the air or routes it around the filter. Measure your slot and match the frame dimension exactly.
